Name: Custom Carbide Screw Mold for Fastener Manufacturing
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: سفارشی
Price: 250.00 USD
Availability: InStock

خانه > محصولات > مشت های کاربید و قالب ها >

Custom Carbide Screw Mold for Fastener Manufacturing

custom carbide screw mold,carbide fastener manufacturing die,screw mold with warranty

carbide fastener manufacturing die

screw mold with warranty

محل منبع:

چونگ کینگ ، چین

نام تجاری:

Henghui

شماره مدل:

سفارشی

تماس با ما

درخواست قیمت

Custom Carbide Screw Mold for Fastener Manufacturing

جزئیات محصول

حالت شکل دهی:

قالب پیش ساخت

مواد تولیدی:

فولاد، فولاد و کربید

انواع مواد:

VA80 ، ST6 ، ST7 ، KG5 ، KG6

قالب بندی:

قالب آهنگری

تحمل:

+/-0.01

ماده موردی:

SKD61 یا H13

شرکت مواد را درج کنید:

6.50 ٪ - 24 ٪

اندازه دانه:

2 ~ 3 میکرومتر - 6 ~ 9 میکرومتر

تراکم:

13.22 - 14.90 گرم در سانتی متر مربع

سختی:

82.5 - 90.5 HRA

TRS:

240 - 340 kgf/mm²

قدرت ضربه:

0.28 - 0.90 kgf/m -cm²

درمان سطحی:

قلع

ترکیب شیمیایی:

C 0.39 ٪ ، SI 1.15 ٪ ، MN 0.44 ٪ ، P 0.021 ٪ ، S 0.007 ٪ ، CR 5.12 ٪ ، MO 1.3 ٪ ، V 0.94 ٪ ، W 0.06

متمرکز بودن:

0.01 میلی متر

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

محصولات مرتبط

High Precision Carbide Die for Screw Extrusion Mould

بهترین قیمت رو بدست بیار

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

بهترین قیمت رو بدست بیار

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

بهترین قیمت رو بدست بیار

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

بهترین قیمت رو بدست بیار

تماس با ما

+8613983025528

hou@citool.com

86-023-60338218-60338218

حالا تماس بگیرید

توضیح محصول

Customized OEM/ODM Fastener Mold Carbide Material Screw Mold

Product Specifications

Shaping Mode	Preform Mould
Product Material	Steel, Steel and carbide
Product	Vehicle Mould
Material	VA80, ST6, ST7, KG5, KG6
Shaping Mold	Forging Mould
Tolerance	+/-0.01
Sharp	According to drawings
Usage	For making screws
Mould life	Long life time
Case material	SKD61 or H13
Application	Industry

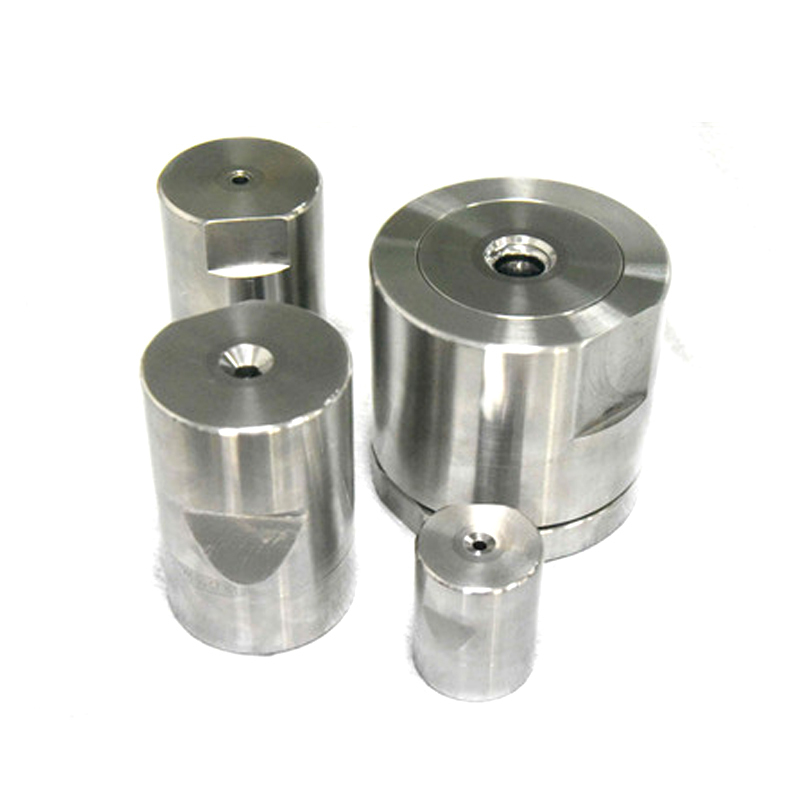

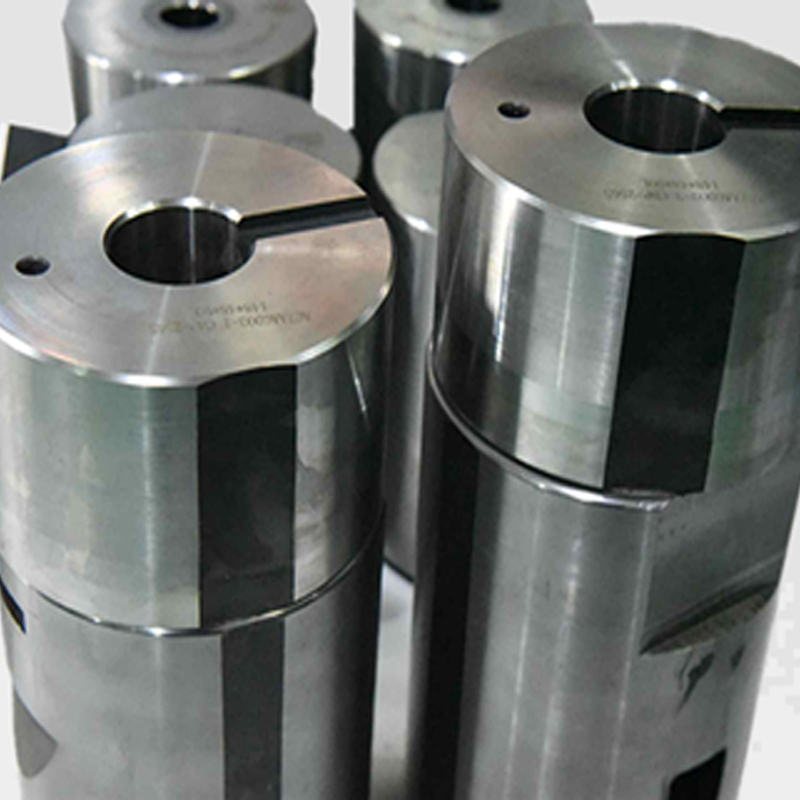

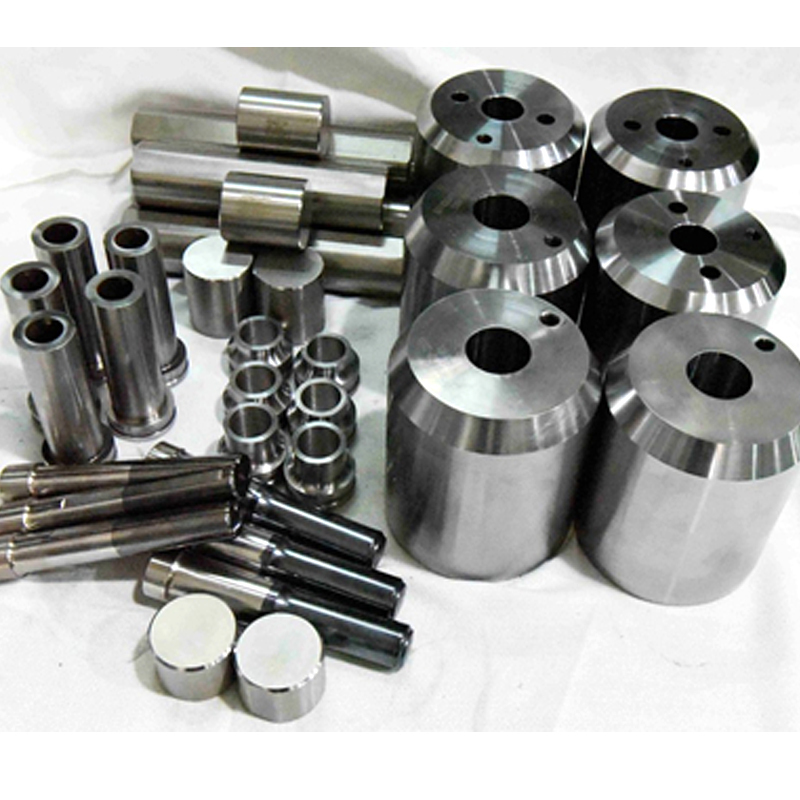

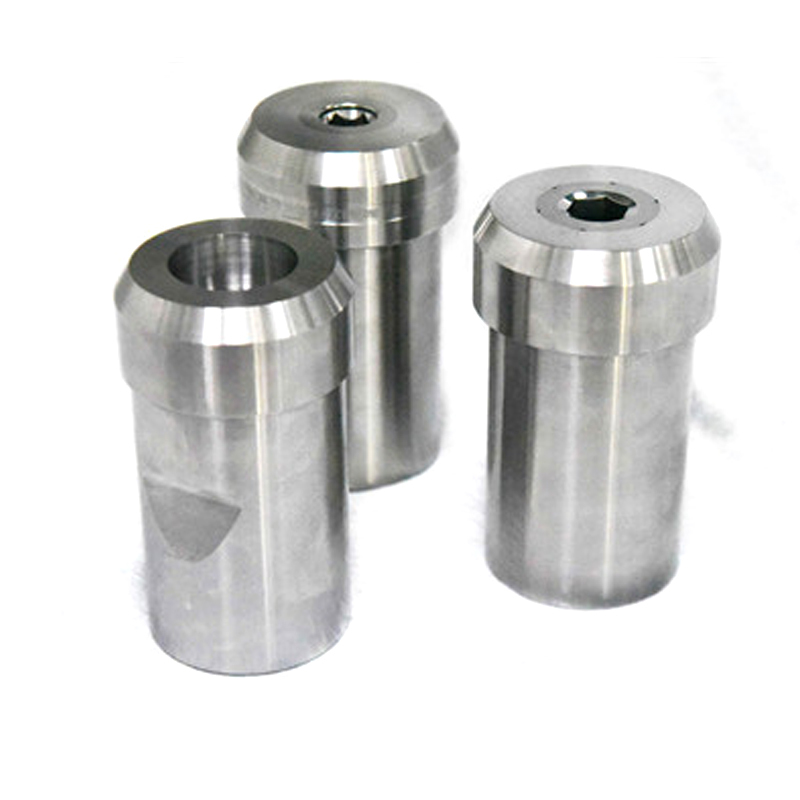

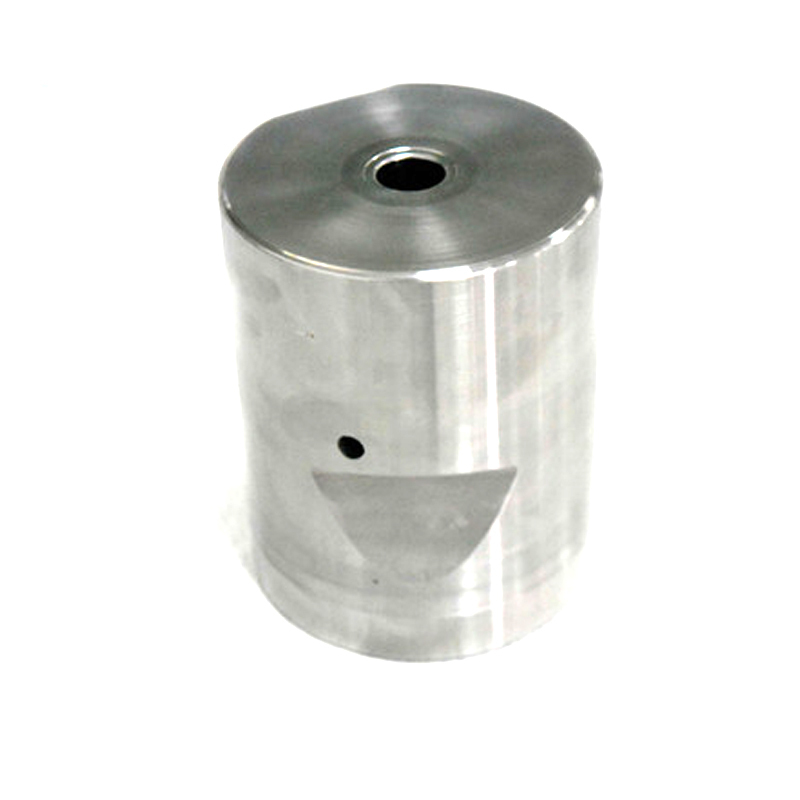

Product Images

Insert Material Options

We provide various carbide materials tailored to different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained
ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material

Primary case material: H13(SKD61) HRC46-48

Chemical Composition (SKD61/H13)
C	Si	Mn	P	S	Cr	Mo	V	W
0.39%	1.15%	0.44%	0.021%	0.007%	5.12%	1.3%	0.94%	0.06%
Cu	Ni
0.05%	0.06%

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Facility

About Chongqing Henghui Precision Mold Co., Ltd.

We specialize in precision mold manufacturing with advanced equipment including CNC lathes, machining centers, grinding machines, and EDM machines. Our quality assurance includes Rockwell Hardness Testers, Projectors, and 3D Image Measuring Instruments.

We use high-quality tungsten carbide materials and professional vacuum heat treatment to produce molds with:

Relative standard deviation controlled within 0.005mm
Concentricity controlled within 0.01mm

Certified under ISO9001:2015 quality management system, we serve customers globally including Southeast Asia, Europe, and the United States.

Exhibition Participation

We actively participate in international fastener exhibitions including German Fastener Exhibition and Indian Fastener Exhibition, showcasing our latest products and technologies.

Packaging & Delivery

Packaging: Carton Box; Export Standard Package, or as per client requirements.
Delivery Time: 12-45 days depending on order quantity.

Quality Inspection

Frequently Asked Questions

Q: How can I get a quotation from your company?

A: Please provide drawings, material specifications, quantity requirements, and surface treatment preferences for an accurate quote.

Q: What is your lead time?

A: Production time varies based on order quantity and destination country, typically ranging from 12-45 days.
