High Quality Strong Beam Die Carbide Shaped Forming Dies Corrosion Resistance
Our Company
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester,Projector,3D Image Measuring Instrument,etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.
Our Logistics for tungsten carbide heading dies Shipping:
The following ways are the usual ways chosen to ship our Carbide Shaped Forming Dies , while any other choices or
requirements are also welcomed.
The Carbide Shaped Forming Dies we supply for customer including:
1. Straight hole insert mold
2.Extrusion hole insert mold
3.Cutter knife mold
4.Wire drawing mold
5.Tube drawing mold
6.Multiple-position mold
7.Miscellaneous molds for screw machine
We know clear and use different types of tungsten carbide inserted for making different type/shape of screws.
Size Requirement
Pls provide us with the details of die case size, wire diameter,
length or screw size when you inquire or order.
It is highly suggested that you send the drawings or screw samples for our reference.

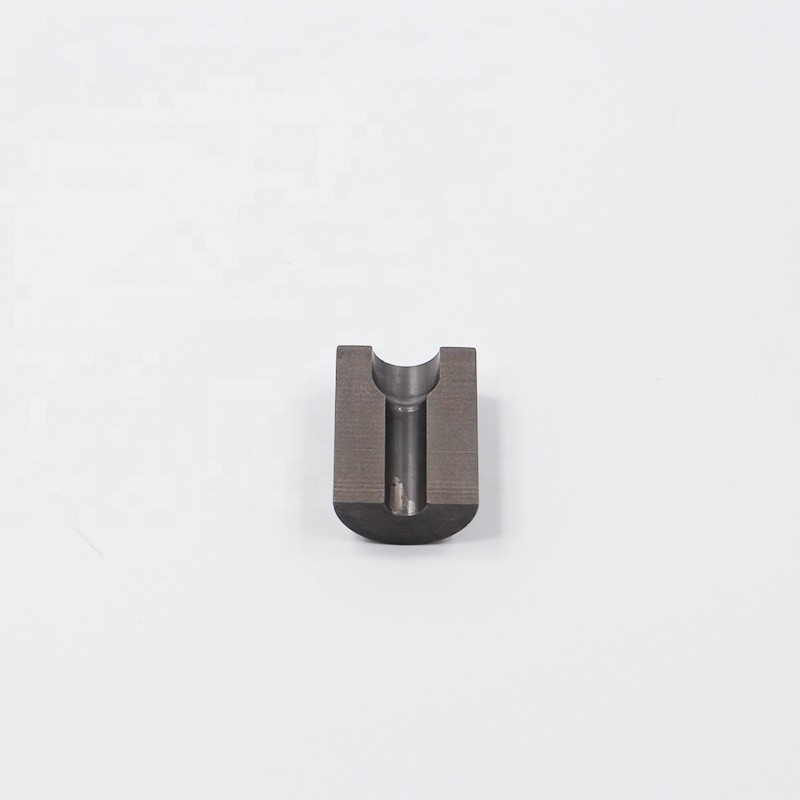

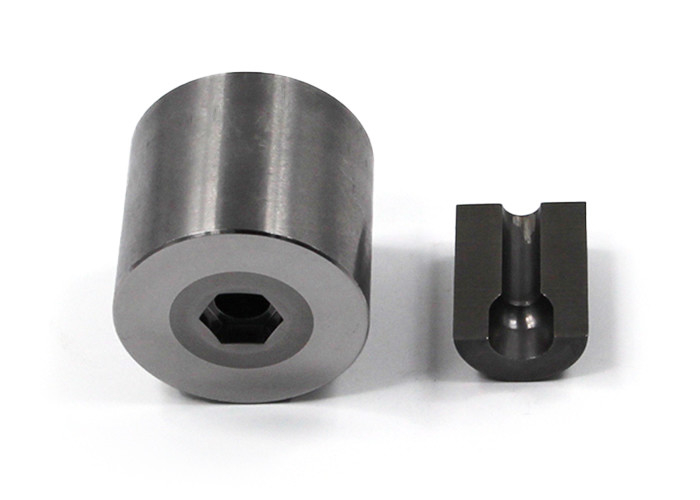

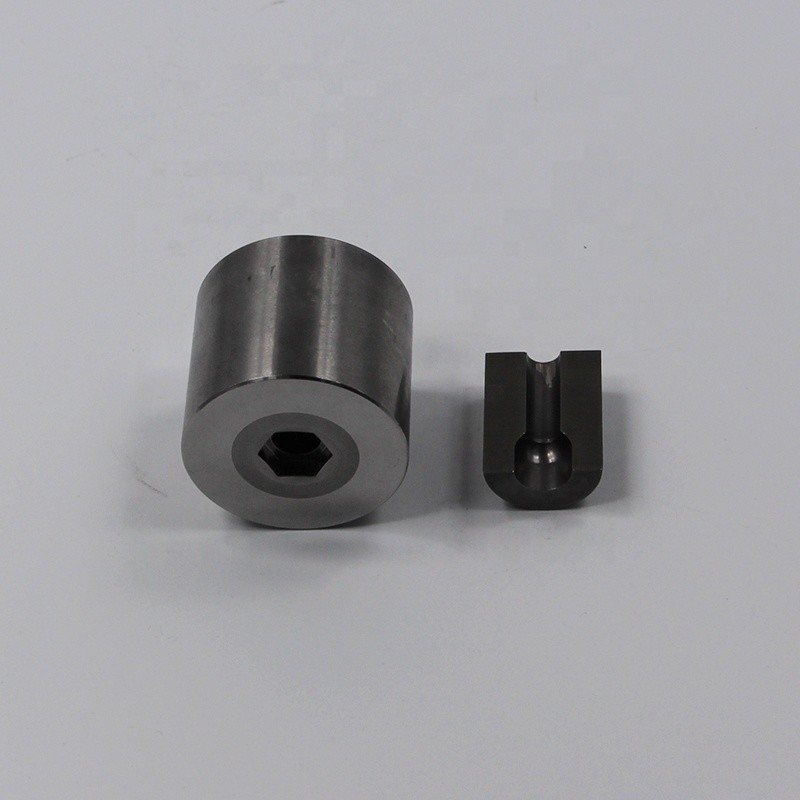

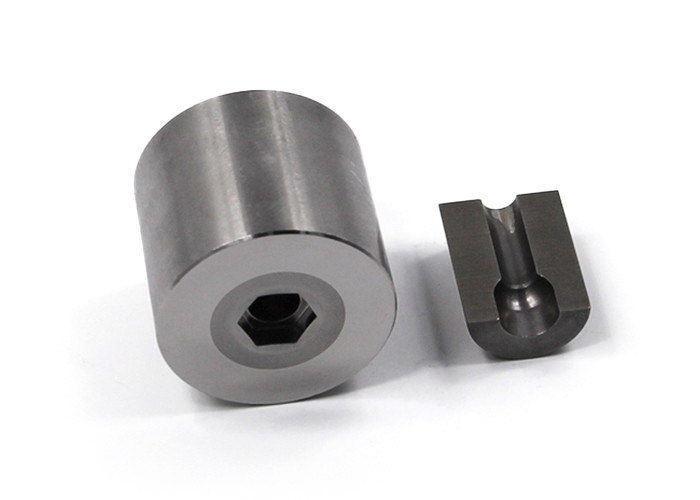

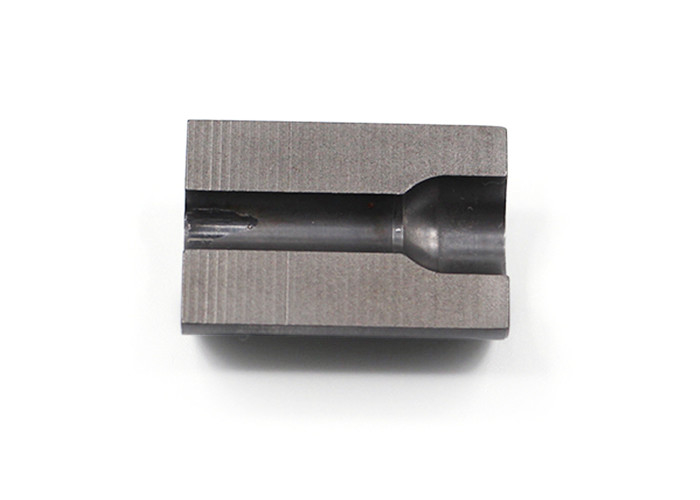

Carbide Shaped Forming Dies Show:
Certificate We Have
|
|
Item
|
Co
|
Grain Size
|
Density
|
Hardness
|
TRS
|
Impact Strength
|
Application
|
|
Mediun-Grained
|
|
Co%
|
μm
|
g/cm²
|
HRA
|
Kgf/mm²
|
Kgf/m-cm²
|
|
|
KG2
|
6.50%
|
2~3
|
14.90
|
90.5
|
320
|
0.28
|
Drawing die
|
|
KG3
|
9%
|
2~3
|
14.61
|
89.3
|
340
|
0.52
|
Extrusion die
|
|
KG5
|
12%
|
2~3
|
14.31
|
88.3
|
340
|
0.58
|
Extrusion die
|
|
KG6
|
14%
|
2~3
|
14.12
|
87.3
|
320
|
0.65
|
Extrusion die
|
|
Coarse-Grained
|
ST6
|
15%
|
3~6
|
13.80
|
86.0
|
270
|
0.78
|
Stainless steel
|
|
ST7
|
20%
|
2~6
|
13.40
|
85.3
|
270
|
0.80
|
Stainless steel
|
|
EA65
|
18%
|
2~6
|
13.73
|
85.0
|
300
|
0.80
|
Carbon steel screw/cutting die
|
|
VA80
|
20%
|
3~6
|
13.58
|
84.0
|
280
|
0.85
|
Impact resistance
|
|
VA90
|
22%
|
6~9
|
13.39
|
82.5
|
240
|
0.90
|
Impact resistance
|
|
EA90
|
24%
|
2~6
|
13.22
|
82.8
|
270
|
0.90
|
Impact resistance
|
Material: Carbide＞M42(H59)＞M35(H55)＞M2(H9)
| H9(M2) |
| Chemical Composition |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
V |
W |
| Content (%) |
0.85 |
0.33 |
0.34 |
0.027 |
0.005 |
4.12 |
4.73 |
1.78 |
5.74 |
| |
Cu |
Ni |
|
|
|
|
|
|
|
| |
0.12 |
0.24 |
|
|
|
|
|
|
|
| M42(SKH59) |
| Chemical Composition |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
V |
W |
| Content (%) |
1.06 |
0.3 |
0.31 |
0.018 |
0.002 |
3.74 |
9.29 |
1.1 |
1.34 |
| |
Cu |
Ni |
Co |
|
|
|
|
|
|
| |
0.07 |
0.29 |
7.79 |
|
|
|
|
|
|
Advantages:
1.High quality
2.Reasonable price
3.On time delivery
4.In-time sending pictures for the mold machining progress and mold finishing
schedule
5.In-time mold test and sample delivery
Packing and Delivering:
F&Q:
Q1::Are you a factory or trading company?
A1:We are a factory, Henghui has 7,000 square meters of manufacturing plants
and R&D bases
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Hailong Village, Baishiyi Town, Jiulongpo District,
Chongqing City, China.
All our clients, from home or abroad, are warmly welcome to visit us at anytime!
Q3:What is the material of your products?
A3:The materials are DC53,SKD11,D2,SKH-9,SKH-51, or as our clients’ requirements.
Q4: The maximum press your factory have available ?
A4: Our factory has 30T,60T,160T punching machines
Q5::How does your factory do regarding quality control?
A5: Quality is priority. Henghui people always attach great
importance to quality controlling from the very beginning to
the very end. All the molds, the QC measure with three-D
measuring equipments regularly.
